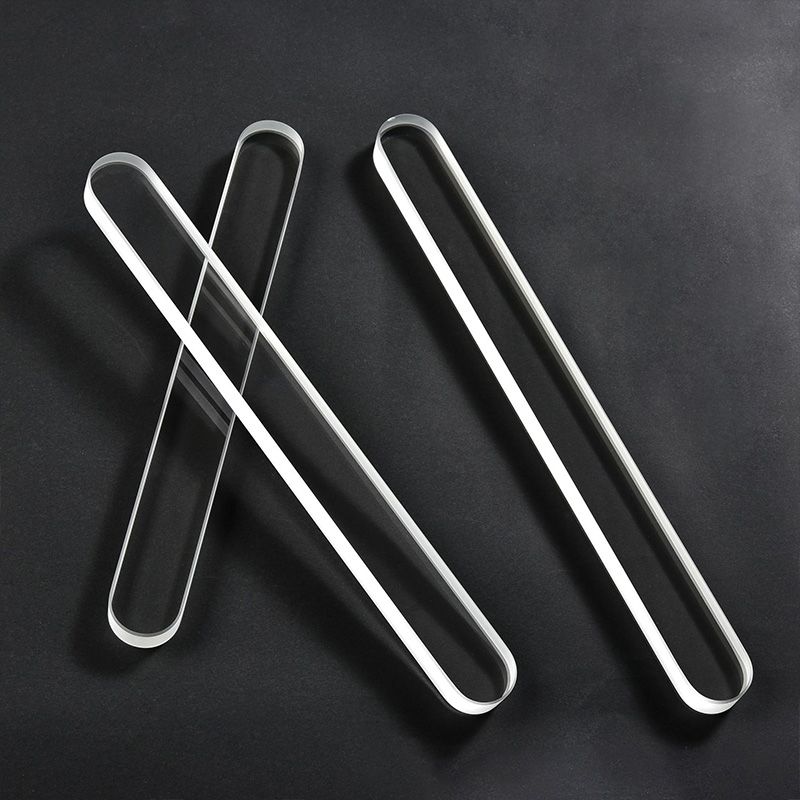

Transparent Gauge Glass

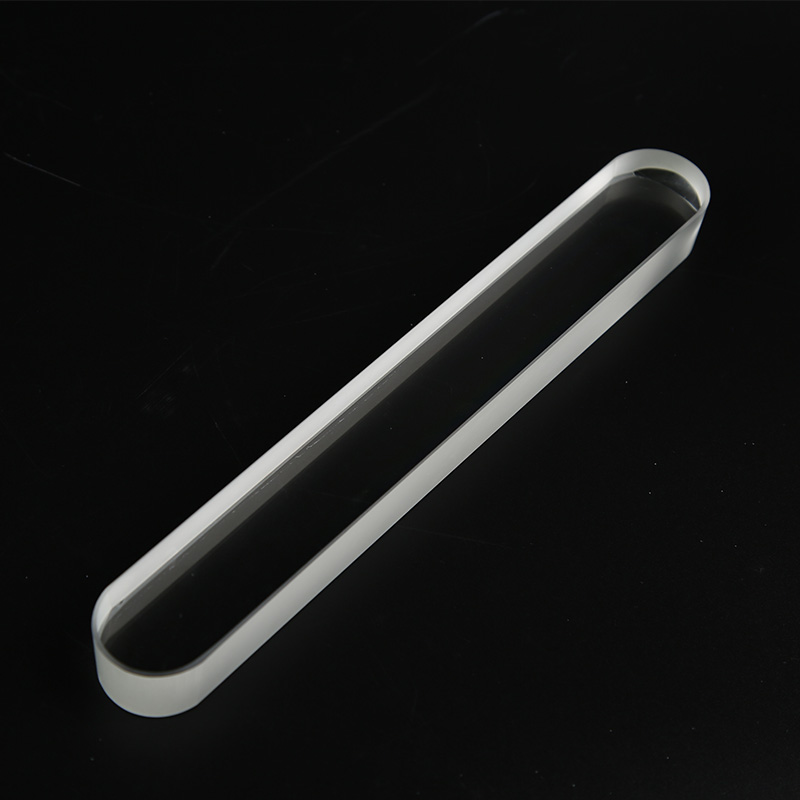

Transparent gauge glass with tight tolerance and polishing edge
Transparent gauge glass is usually made by borosilicate 3.3, borosilicate 4.2 and aluminosilicate glass, but also can be soda lime glass for low temperature working environment and quartz glass for high temperature working environment.
We can help customer to choose suitable material and size transparent gauge glass according to the working condition.
Specification
Material: soda lime glass, borosilicate 3.3, borosilicate 4.2, aluminosilicate glass and quartz glass.

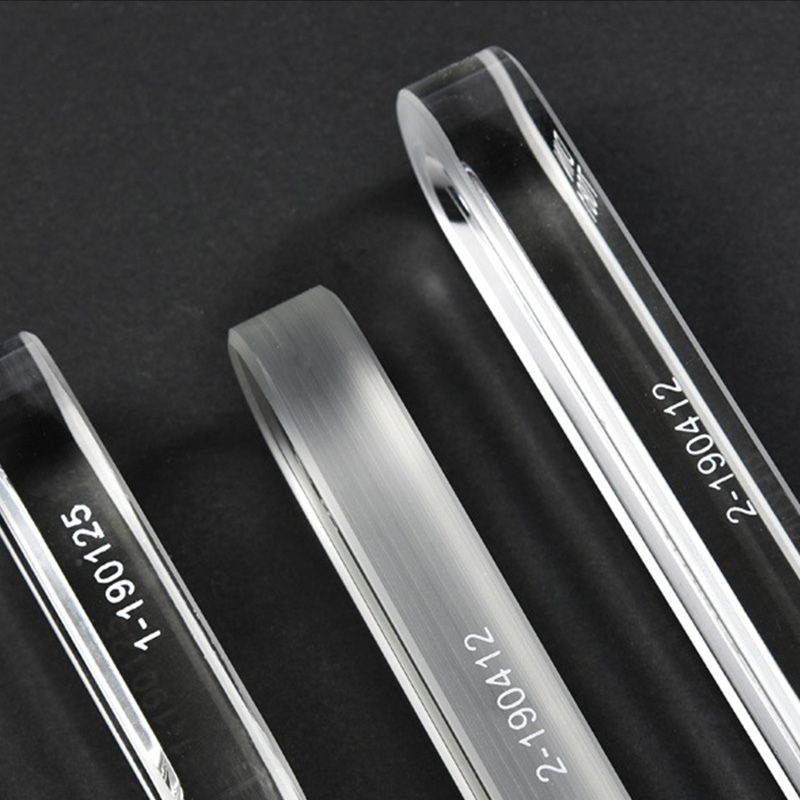

Edge: grinding and polishing
Technology: tempering
Standard: we can produce according to DIN7081 and JIS B8211-1994.
Working temperature: Max 430 ℃.
Working pressure: Max 400 bar.
Accessories: non-asbestos gasket, graphite gasket and mica shield available.
Size: standard size and customized size available.

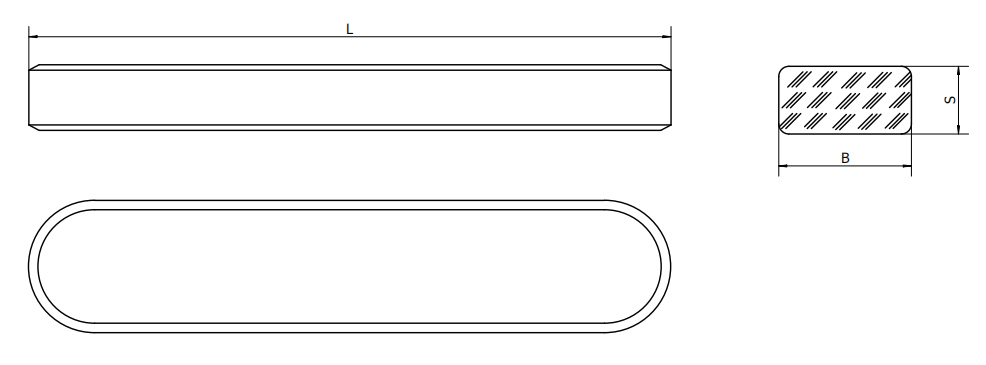

Overall Dimension(mm)
| Size | Type A | Weight g/piece | Type B | Weight g/piece | Type H | Weight g/piece | Type TA 28 | Weight g/piece | ||||||||
| L | B | S | L | B | D | L | B | S | L | B | S | |||||
| Ⅰ | 115 | 30 | 17 | 122 | 115 | 34 | 17 | 137 | - | - | - | - | 113 | 27.6 | 16.8 | 114 |
| Ⅱ | 140 | 30 | 17 | 152 | 140 | 34 | 17 | 172 | 140 | 34 | 22 | 218 | - | - | - | - |
| Ⅲ | 165 | 30 | 17 | 176 | 165 | 34 | 17 | 204 | 165 | 34 | 22 | 260 | 163 | 27.6 | 16.8 | 168 |
| Ⅳ | 190 | 30 | 17 | 211 | 190 | 34 | 17 | 238 | 190 | 34 | 22 | 302 | 188 | 27.6 | 16.8 | 194 |
| Ⅴ | 22 | 30 | 17 | 250 | 22 | 34 | 17 | 280 | 220 | 34 | 22 | 357 | 218 | 27.6 | 16.8 | 226 |
| Ⅵ | 250 | 30 | 17 | 280 | 250 | 34 | 17 | 317 | 250 | 34 | 22 | 400 | 248 | 27.6 | 16.8 | 258 |
| Ⅶ | 280 | 30 | 17 | 314 | 280 | 34 | 17 | 356 | 280 | 34 | 22 | 460 | 278 | 27.6 | 16.8 | 290 |
| Ⅷ | 320 | 30 | 17 | 360 | 320 | 34 | 17 | 407 | 320 | 34 | 22 | 530 | 318 | 27.6 | 16.8 | 334 |
| Ⅸ | 340 | 30 | 17 | 387 | 340 | 34 | 17 | 430 | 340 | 34 | 22 | 562 | 338 | 27.6 | 16.8 | 356 |
| Ⅹ | - | - | - | - | 370 | 34 | 17 | 480 | - | - | - | - | - | - | - | - |

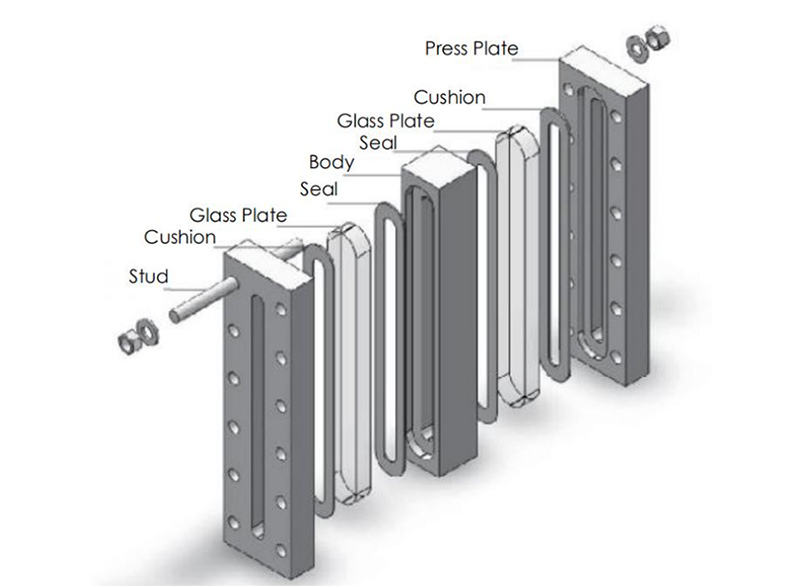

How transparent gauge glass installed.
Advantages
We have full standard sizes in stock and lead time short.
Customized size is acceptable.
Our borosilicate 3.3 reflex gauge glass passed the test of Klinger.
High heat and pressure resistance.
Hydrolytic resistance, acid resistance and alkali resistance meet DIN7081 standard.
Packing
White box standard packing.
OEM acceptable.
